What is Cathode Ray Tube (C R T) Diagram and Working

Cathode Ray Tube (C R T)


Definition: Cathode ray tube, CRT is the heart of CRO which produces images when electron beam from the back of the tube strikes the fluorescent screen with sufficient energy. CRT technique is used in traditional televisions and computer monitors.
Constructional details of Cathode Ray Tube
CRT consist of the following parts:
  1. Electron gun
  2. Deflection plate assembly
  3. Glass envelope
  4. Fluorescent screen
  5. Base, for connections

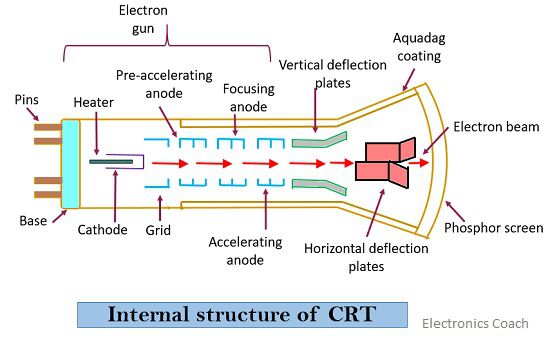

The diagram given below shows the internal structure of the CRT
internal structure of CRT
A sharply focused beam is produced by the electron gun assembly. This high-velocity beam strikes fluorescent screen thus causing a luminous spot on the screen.
The two electrostatic deflection plates deflect the accelerated beam by the application of voltage. This applied voltage moves the beam vertically up and down and horizontally from one side to other.
These two movements are independent of each other which causes the beam to be positioned anywhere on the screen.
Working of Cathode Ray Tube
The main parts of CRT are responsible for the working of it that is explained below-

Electron gun

The electron gun is the main source of focused accelerated electron beam. It consists of a heater, a cathode, pre-accelerating anode, accelerating anode which emits electrons and forms them into a beam.
The cathode is heated indirectly from which electrons are emitted. To obtain high emission of electrons at a moderate temperature a layer of barium and strontium oxide is deposited at the end of the cathode.
An indirectly heated cathode requires current and voltage value 600 mA at 6.3 V. In case of a highly efficient system the value is 300 mA at 6.3 V.
The emitted electrons further pass through a small hole present in the control grid. The control grid is basically a nickel cylinder of aperture 0.5. It is a low permeability steel material. The intensity by which beam of electron moves depends entirely on the electron emitted from the cathode. The number of electrons emitted from the cathode is controlled by the grid.
A positive high potential is applied at the pre-accelerating anode by which the beam gets accelerated. This high positive potential is about 1500 V. Focusing anode helps in focusing the electron beam and is connected with a lower adjustable voltage of about 500 V.
The highly focused beam moves towards vertical and horizontal deflection plates after which it reaches to fluorescent screen.
Focusing of an electron beam is accomplished by two methods- Electrostatic focusing and Electromagnetic focusing.
Let us now discuss electrostatic focusing in detail

Electrostatic focusing

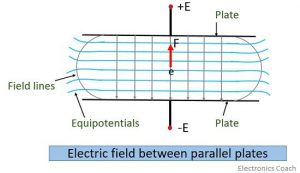

In the figure shown below, we can see an electron placed at rest in an electric field produced two parallel plates.
electric field lines
Force on an electron is
Ꜫ = electric field intensity V/m
e = charge of electron
The negative sign indicates that the acting force is opposite to that of the field.
It is necessary that the field is of uniform intensity where the electron is placed. The lateral repulsion of electric field lines causes spreading of spaces between the field lines which results in curved lines at the ends. This is the reason why field intensity is less at the ends.
The force is in opposite direction to that of the field and an equipotential surface is perpendicular to the field thus the force on the electron is in the normal direction to the equipotential surface.

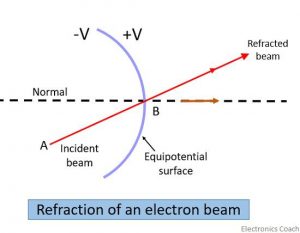

Let us now consider the region of two sides of equipotential surface S as represented in the figure given below-
refraction of beam
The potential on the left side of the surface is –V and on the right side is +V. Consider an electron is moving from A to B enters on the left side of S. A force is experienced by this electron in the normal direction to the surface S and thus it gets accelerated.

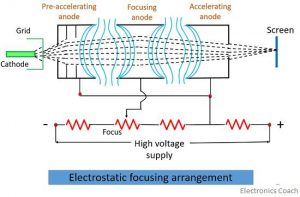

Now, let’s have a look at the functional diagram of the electrostatic focusing arrangement
eletrostatic focusing arrangement
The pre-accelerating anode and accelerating anode are connected to a high positive potential and focusing anode is connected to a lower potential as we have discussed earlier. Due to this difference in potential between focusing anode and accelerating anode a non-uniform field exists on each end of focusing anode. Thus equipotential surface forms a “double concave lens”.
The beam that enters the field at angles other than normal will be deflected towards the normal and thus causing the beam to be focused towards the centre.

Electrostatic Deflection

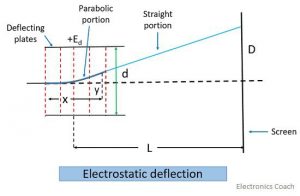

The figure shown below describes the general arrangement for electrostatic deflection.
electrostatic deflection
A potential is applied between two parallel plates. A uniform electrostatic field is produced by these plates in the Y direction. Thus the entering electron will experience a force in the y-direction and will be accelerated in that particular direction. There is no force in X and Z directions resulting in no acceleration in these two directions.
After leaving the deflection plates, electrons travel in a straight line and a highly accelerated beam is sometimes difficult to deflect and called “hard beam”.

Post deflection acceleration

After passing beyond the deflection plates, the electron may and may not experience additional acceleration. But this primarily depends on maximum frequency applied to CRT.
In electrostatic deflection system, a low value of accelerating voltage must be used and this voltage usually kept below 4 KV. This low value gives better sensitivity but leads to the reduction in brightness. If maximum frequency to be displayed is below 10 MHz generally monoaccelerator tubes may be used. If a signal of frequency more than 10 MHz is to be displayed, post-deflection acceleration is necessary so as to increase the brightness of the traces.

Deflection Plates

When electron beam leaves the electron gun, it passes through 2 pairs of deflection plates.
One pair of plates is mounted in the horizontal direction and produces an electric field in the vertical plane. Thus produces vertical deflection and is called vertical deflection plates or Y plates.
The other pair is mounted in the vertical direction and produces an electric field in the horizontal plane. Thus producing horizontal deflection and is called horizontal deflection plates or X plates.
The plates are flared so that the beam can pass through it without striking.

Screen for CRT

The front portion of the CRT is called the faceplate. It is flat for small screen sizes to about 100mm Χ 100mm and is slightly curved in case of larger displays.
The inner surface of the faceplate is coated with a phosphor; this phosphor converts electrical energy into light energy. When an electron beam strikes the phosphor crystal, it raises their energy level.
This is known as cathodoluminescence. During phosphor excitation, light is excited and this is called fluorescence.
To have a flicker-free display, a phosphor must be refreshed by electron before the end of its decay time. Short persistence phosphor requires more frequent refreshes. In case of use in radars, long persistence is needed. It is even needed in storage types oscilloscopes. Electron beam on striking phosphor gives off light and heat.
The luminance of phosphor is a measure of its brightness. It is determined by luminance efficiency of phosphor and by the beam energy.
